The line is designed for semi-automatic production of lollipops, capacity up to 150 kg / h.
Production line can be divided into 3 zones, performing full cycle process of production lollipops step by step: from the preparation of caramel mass and to packaging of finished products.
1. Boiler to melting sugar
Specification:
high thermal efficiency, long service life, high sugar melting speed.
Technical parameters:
Production capacity: 60 kg / 20 ~ 25min
Power: 40kW
External dimensions (mm): 800 × 800 × 2000.450 × 350 × 700 Weight: 300 kg
Table for cooling caramel mass
External dimensions (mm): 1800 × 1000 × 600Ves: 450 kg.

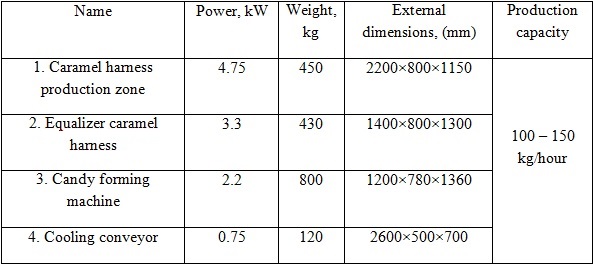

2. Automatic zones of production caramel harness and formation of candy
3. Packaging machine for lollipops
Technical parameters:
Power: 3.5 kW
External dimensions (mm): 3800 × 900 × 1600 Weight: 1100 kg
Required area for line accommodation - 100 sq.m.
Delivery: 90 days after receiving advance payment of 70%
